1.No oxidation, No corrosion . it is not easy to oxidated and corrosive in rainy place usually or damp place, so it will be better for insulating glass life.
2.The surface is high brightness , neat and smooth, and no bumps.
3.Eliminate welding defects, double row of holes, uniform hole penetration and good linearity.
4.The air hole is not influence to usage of molecular and it can ensure the activity of the molecular seive.besides it can be bonded with various sealants well.
5.With high strength , good toughness, non-deformation and dimensional stable.
6.High Purity Aluminum Alloy
Raw material options
Butyl sealant,Calcium powder,Polyisobutylene
BASF polyisobutylene,butly sealant,Calcium
3003 aluminum alloy
GB/T 3190-1996 EN AW-3003/AlMn1Cu EN 573-3-194
Aluminuum foil film
Aluminum foil film
Aluminum foil membrane
3A molecular sieve
Specification sand technical parameters
144 carton with pallet
Size of roll
170 carton with pallet
Size of roll
Special size can be customized,MOQ 20 thousands meters.
Manufacturing building doors and windows,Train,Bus,insulating glass,insulating door, shutter,Refrigeration equipment and soon.
Using method and attention
All the glass should be dry and clean.The insulating glass should be made by the following steps.
1.Putting the spacer on to the corner of one glass,then making thes pacer straight,at the same time keeping the spacer around the surface of the glass,at the end,reserved 2.5mm-3.0mm to the edge of the glass and the spacer should be reserved about 20mm more joint the pact pressing the joint,making no space in the circle.3.0mm to the edge of the glass and the spacer should be reserved about 20mm more joint the pact pressing the joint,making no space in the circle.
2.Then putting another glass onto the one which has the spacer above,making sure the two pieces of glass are mutual alignment in both vertical and horizonal.
3.Putting them into the hot press machine with the temperature between 110-140℃ inside and 50~60℃ the outlet.
4.According to the structure requirement of the insulating glass,two component silicone sealant could be putting outside of the spacer.Then a piece of insulating glasss hould come out.
5.The butyl spacer must be carrie dout in accordance with this attention other wise may cause the seal leakage.

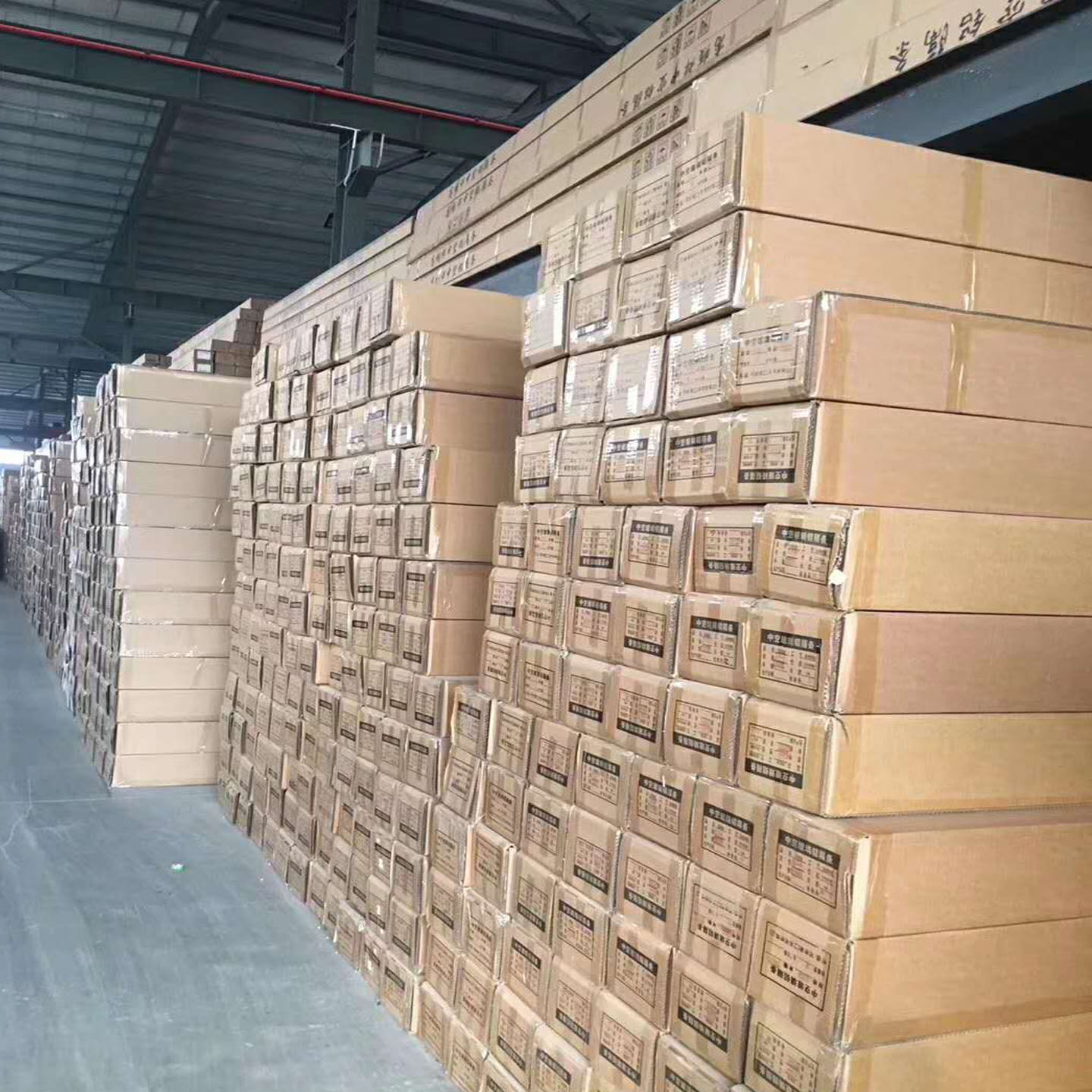

Vacuum,Roll then packed in Carton 12cartons/pallet(big) 20cartons/pallet(small) 144bog cartons in 20' container.176 small cartons in 20' container.
1.24 hours technical supporting by e-mails.
2.24 hours calling service & online service.
3.Oversea door-to-door service available.
4.User manual and detailed operating video/CD available.
Cacuum sealed for 3 years,made into insulating glass according to the operation manual,warranty for 10 years.
